NTC熱敏電阻-50K R值與電壓輸出表

時間:2019-03-11 ??來源:敏創電子??編輯:熱敏電阻廠家??瀏覽:次

在25'C / 77F處的電阻= 千歐

公差（％）= 5％（0.05）

Vin =	5.00V
R1 =	50.00 千歐
R2 =	10.00 千歐

轉換公式	輸出電壓	=	R2	X Vin
			(R1 + R2)

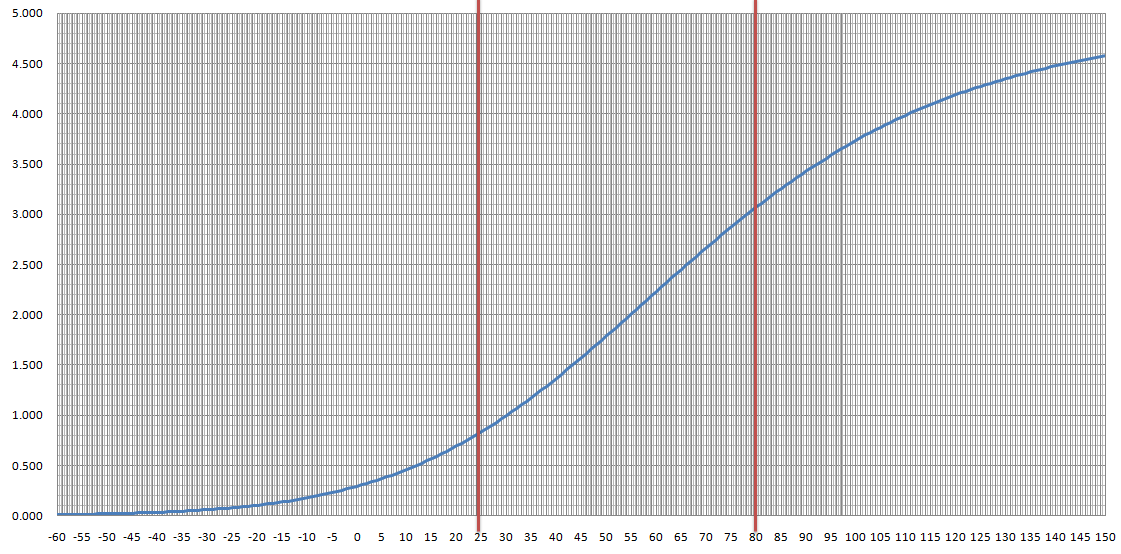

ntc-50k電壓輸出表

溫度(攝氏)	NTC R值(千歐)			輸出電壓 (V)
溫度(攝氏)	最小值	NOM	MAX	最小值	NOM	MAX
-60	6210.100	7025.000	7839.900	0.008	0.007	0.006
-59	5759.463	6507.500	7255.537	0.009	0.008	0.007
-58	5344.436	6031.550	6718.664	0.009	0.008	0.007
-57	4962.094	5593.550	6225.006	0.010	0.009	0.008
-56	4609.565	5190.250	5770.935	0.011	0.010	0.009
-55	4284.406	4818.650	5352.894	0.012	0.010	0.009
-54	3984.266	4476.100	4967.934	0.013	0.011	0.010
-53	3707.151	4160.150	4613.149	0.013	0.012	0.011
-52	3451.056	3868.550	4288.044	0.014	0.013	0.012
-51	3214.355	3599.300	3984.245	0.016	0.014	0.013
-50	2995.347	3350.500	3705.653	0.017	0.015	0.013
-49	2792.535	3120.500	3448.465	0.018	0.016	0.014
-48	2604.778	2907.800	3210.822	0.019	0.017	0.016
-47	2430.882	2710.950	2991.018	0.020	0.018	0.017
-46	2269.736	2528.700	2787.664	0.022	0.020	0.018
-45	2120.302	2359.850	2599.398	0.023	0.021	0.019
-44	1981.671	2203.350	2425.029	0.025	0.023	0.021
-43	1852.977	2058.200	2263.423	0.027	0.024	0.022
-42	1733.484	1923.550	2113.616	0.029	0.026	0.024
-41	1622.517	1798.800	1974.883	0.031	0.028	0.025
-40	1519.298	1682.500	1845.703	0.033	0.030	0.027
-39	1423.389	1574.650	1725.911	0.035	0.032	0.029
-38	1334.155	1474.400	1614.645	0.037	0.034	0.031
-37	1251.046	1381.150	1511.254	0.040	0.036	0.033
-36	1173.613	1294.350	1415.087	0.042	0.038	0.035
-35	1101.488	1213.600	1325.712	0.045	0.041	0.037
-34	1034.214	1138.350	1242.486	0.048	0.044	0.040
-33	971.421	1068.200	1164.979	0.051	0.046	0.043
-32	912.874	1002.850	1092.826	0.054	0.049	0.045
-31	858.202	941.900	1025.597	0.058	0.053	0.048
-30	807.120	885.000	962.880	0.061	0.056	0.051
-29	759.304	831.850	904.395	0.065	0.059	0.055
-28	714.655	782.250	849.844	0.069	0.063	0.058
-27	672.892	735.900	798.907	0.073	0.067	0.062
-26	633.853	692.600	751.346	0.078	0.071	0.066
-25	597.310	652.100	706.889	0.082	0.076	0.070
-24	563.077	614.190	665.302	0.087	0.080	0.074
-23	531.046	578.740	626.434	0.092	0.085	0.079
-22	501.032	545.555	590.077	0.098	0.090	0.083
-21	472.900	514.470	556.039	0.104	0.095	0.088
-20	446.522	485.350	524.178	0.110	0.101	0.094
-19	421.800	458.060	494.320	0.116	0.107	0.099
-18	398.594	432.470	466.345	0.122	0.113	0.105
-17	376.600	408.460	440.119	0.129	0.119	0.111
-16	356.329	385.930	415.530	0.136	0.126	0.118
-15	337.087	364.770	392.452	0.144	0.133	0.124
-14	319.001	344.900	3707.985	0.152	0.141	0.013
-13	301.987	326.230	3504.472	0.160	0.149	0.014
-12	285.982	305.680	331.377	0.169	0.158	0.146
-11	270.916	292.175	313.433	0.178	0.165	0.155
-10	256.731	276.650	296.569	0.187	0.174	0.163
-9	243.342	262.030	280.718	0.197	0.184	0.172
-8	230.734	248.270	165.805	0.208	0.194	0.284
-7	218.857	235.315	251.772	0.218	0.204	0.191
-6	207.664	223.115	238.565	0.230	0.214	0.201
-5	197.108	211.615	226.121	0.241	0.226	0.212
-4	187.159	200.780	214.400	0.254	0.237	0.223
-3	177.770	190.565	203.359	0.266	0.249	0.234
-2	168.906	180.925	192.943	0.279	0.262	0.246
-1	160.543	171.835	183.126	0.293	0.275	0.259
0	152.6388	163.250	173.8613	0.307	0.289	0.272
1	145.1670	155.145	165.1224	0.322	0.303	0.286
2	138.1110	147.495	156.8786	0.338	0.317	0.300
3	131.4340	140.260	149.0852	0.354	0.333	0.314
4	125.1230	133.425	141.7267	0.370	0.349	0.330
5	119.1500	126.960	134.7693	0.387	0.365	0.345
6	113.5010	120.850	128.1989	0.405	0.382	0.362
7	108.1490	115.065	121.9804	0.423	0.400	0.379
8	103.0804	109.590	116.0996	0.442	0.418	0.397
9	98.2811	104.410	110.5389	0.462	0.437	0.415
10	99.729	99.500	105.271	0.456	0.457	0.434
11	89.39331	94.845	100.2967	0.503	0.477	0.453
12	85.28563	90.135	95.58437	0.525	0.499	0.474
13	81.39752	86.260	911.2248	0.547	0.519	0.054
14	77.70931	82.300	868.907	0.570	0.542	0.057
15	74.207	78.540	82.873	0.594	0.565	0.538
16	70.890	74.980	79.070	0.618	0.588	0.561
17	67.740	71.600	75.460	0.643	0.613	0.585
18	64.748	68.390	72.032	0.669	0.638	0.610
19	61.907	65.345	68.783	0.695	0.664	0.635
20	59.2026	62.450	65.6974	0.723	0.690	0.661
21	56.6087	59.705	62.8013	0.751	0.717	0.687
22	54.14073	57.090	60.03927	0.780	0.745	0.714
23	51.80578	54.610	57.41422	0.809	0.774	0.742
24	49.58991	52.245	54.90009	0.839	0.803	0.770
25	47.5000	50.000	52.5000	0.870	0.833	0.800
26	45.44642	47.860	50.27358	0.902	0.864	0.830
27	43.48013	45.825	48.16987	0.935	0.896	0.860
28	41.60333	43.890	46.17667	0.969	0.928	0.890
29	39.81409	42.045	44.27591	1.004	0.961	0.921
30	38.10961	40.285	42.46039	1.039	0.994	0.953
31	36.50189	38.610	40.71811	1.075	1.029	0.986
32	34.97103	37.015	39.05897	1.112	1.063	1.019
33	33.51331	35.495	37.47669	1.149	1.099	1.053
34	32.12316	34.045	35.96684	1.187	1.135	1.088
35	30.79642	32.660	34.52358	1.226	1.172	1.123
36	29.53262	31.340	33.14738	1.265	1.209	1.159
37	28.32754	30.080	31.83246	1.305	1.248	1.195
38	27.18041	28.880	30.57959	1.345	1.286	1.232
39	26.08201	27.730	29.37799	1.386	1.325	1.270
40	25.0369	26.635	28.2331	1.427	1.365	1.308
41	24.0421	25.590	27.1379	1.469	1.405	1.346
42	23.0905	24.590	27.1379	1.511	1.446	1.346
43	22.1819	23.635	26.0895	1.554	1.487	1.385
44	21.3118	22.720	25.0881	1.597	1.528	1.425
45	20.4801	21.845	24.1282	1.640	1.570	1.465
46	19.6868	21.010	23.2099	1.684	1.612	1.506
47	18.9269	20.210	22.3332	1.728	1.655	1.546
48	18.2007	19.445	21.4931	1.773	1.698	1.588
49	17.5079	18.715	20.6893	1.818	1.741	1.629
50	16.84403	18.015	19.18598	1.863	1.785	1.713
51	16.20908	17.345	18.48092	1.908	1.828	1.756
52	15.59797	16.700	17.80203	1.953	1.873	1.798
53	15.01551	16.085	17.15449	1.999	1.917	1.841
54	14.45699	15.495	16.53301	2.044	1.961	1.884
55	13.92237	14.930	15.93763	2.090	2.006	1.928
56	13.41162	14.390	15.36838	2.136	2.050	1.971
57	12.92004	13.870	14.81996	2.181	2.095	2.015
58	12.45226	13.375	14.29774	2.227	2.139	2.058
59	12.00345	12.900	13.79655	2.272	2.183	2.101
60	11.5692	12.440	13.3108	2.318	2.228	2.145
61	11.1540	12.000	12.8460	2.364	2.273	2.189
62	10.5794	11.580	12.4021	2.430	2.317	2.232
63	10.3761	11.175	11.9739	2.454	2.361	2.275
64	10.0086	10.785	11.5614	2.499	2.406	2.319
65	9.6600	10.415	11.1700	2.543	2.449	2.362
66	9.3211	10.055	10.7889	2.588	2.493	2.405
67	8.9963	9.710	10.4237	2.632	2.537	2.448
68	8.6859	9.380	10.0741	2.676	2.580	2.491
69	8.3897	9.065	9.7403	2.719	2.623	2.533
70	8.103	8.760	9.417	2.762	2.665	2.575
71	7.831	8.470	9.190	2.804	2.707	2.605
72	7.566	8.190	8.813	2.846	2.749	2.658
73	7.313	7.920	8.527	2.888	2.790	2.699
74	7.069	7.660	8.251	2.929	2.831	2.740
75	6.835	7.410	7.985	2.970	2.872	2.780
76	6.605	7.165	7.725	3.011	2.913	2.821
77	6.389	6.935	7.480	3.051	2.952	2.860
78	6.179	6.710	7.241	3.090	2.992	2.900
79	5.978	6.495	7.012	3.129	3.031	2.939
80	5.7868	6.290	6.7932	3.167	3.069	2.977
81	5.6004	6.090	6.5796	3.205	3.108	3.016
82	5.4233	5.900	6.3767	3.242	3.145	3.053
83	5.2463	5.710	6.1737	3.279	3.183	3.091
84	5.0833	5.535	5.9867	3.315	3.219	3.128
85	4.9205	5.360	5.7995	3.351	3.255	3.165
86	4.7669	5.195	5.6230	3.386	3.291	3.200
87	4.6181	5.035	5.4519	3.420	3.326	3.236
88	4.4740	4.880	5.2860	3.454	3.360	3.271
89	4.3346	4.730	5.1254	3.488	3.394	3.306
90	4.203066	4.5885	4.973934	3.520	3.427	3.339
91	4.074420	4.4500	4.825580	3.553	3.460	3.373
92	3.950461	4.3165	4.682539	3.584	3.492	3.405
93	3.830268	4.1870	4.543732	3.615	3.524	3.438
94	3.714750	4.0625	4.410250	3.646	3.556	3.470
95	3.603445	3.9425	4.281555	3.676	3.586	3.501
96	3.495890	3.8265	4.157110	3.705	3.616	3.532
97	3.391625	3.7140	4.036375	3.734	3.646	3.562
98	3.291577	3.6060	3.920443	3.762	3.675	3.592
99	3.194312	3.5010	3.807688	3.790	3.703	3.621
100	3.1008	3.400	3.6992	3.817	3.731	3.650
101	3.0106	3.303	3.5944	3.843	3.759	3.678
102	2.9231	3.208	3.4929	3.869	3.786	3.706
103	2.8385	3.117	3.3945	3.895	3.812	3.733
104	2.7571	3.029	3.2999	3.919	3.838	3.759
105	2.6781	2.943	3.2079	3.944	3.863	3.786
106	2.6019	2.861	3.1191	3.968	3.888	3.811
107	2.5280	2.781	3.0330	3.991	3.912	3.836
108	2.4565	2.703	2.9495	4.014	3.936	3.861
109	2.3877	2.629	2.8693	4.036	3.959	3.885
110	2.320848	2.556	2.791152	4.058	3.982	3.909
111	2.255293	2.486	2.715707	4.080	4.005	3.932
112	2.192237	2.418	2.642763	4.101	4.027	3.955
113	2.131235	2.352	2.571765	4.122	4.048	3.977
114	2.072246	2.288	2.502754	4.142	4.069	3.999
115	2.015643	2.228	2.436357	4.161	4.089	4.020
116	1.960986	2.167	2.372014	4.180	4.110	4.041
117	1.908265	2.109	2.309735	4.199	4.129	4.062
118	1.856980	2.053	2.249020	4.217	4.148	4.082
119	1.807596	1.999	2.190404	4.235	4.167	4.102
120	1.759636	1.9465	2.133364	4.252	4.185	4.121
121	1.713681	1.8960	2.078319	4.269	4.203	4.140
122	1.669078	1.8470	2.024922	4.285	4.220	4.158
123	1.625794	1.7995	1.973206	4.301	4.237	4.176
124	1.583397	1.7530	1.922603	4.317	4.254	4.194
125	1.542776	1.7085	1.874225	4.332	4.270	4.211
126	1.503280	1.6655	1.827720	4.347	4.286	4.227
127	1.464722	1.6235	1.782278	4.361	4.302	4.244
128	1.427099	1.5825	1.737902	4.376	4.317	4.260
129	1.390860	1.5430	1.695140	4.389	4.332	4.275
130	1.355555	1.5045	1.653446	4.403	4.346	4.291
131	1.320931	1.4670	1.613069	4.417	4.360	4.305
132	1.287321	1.4305	1.573679	4.430	4.374	4.320
133	1.254719	1.3950	1.535281	4.443	4.388	4.335
134	1.223090	1.3605	1.497911	4.455	4.401	4.349
135	1.192442	1.3270	1.461558	4.467	4.414	4.362
136	1.627590	1.2945	1.426241	4.300	4.427	4.376
137	1.134035	1.2630	1.391965	4.491	4.439	4.389
138	1.106255	1.2325	1.358745	4.502	4.451	4.402
139	1.079428	1.2030	1.326572	4.513	4.463	4.414
140	1.053078	1.174	1.294922	4.524	4.475	4.427
141	1.027767	1.146	1.264233	4.534	4.486	4.439
142	1.002914	1.119	1.234088	4.544	4.497	4.451
143	0.978945	1.092	1.205055	4.554	4.508	4.462
144	0.955893	1.067	1.177107	4.564	4.518	4.473
145	0.933278	1.042	1.234086	4.573	4.528	4.451
146	0.911120	1.017	1.122880	4.582	4.538	4.495
147	0.889858	0.994	1.097142	4.591	4.548	4.506
148	0.869044	0.971	1.071336	4.600	4.558	4.516
149	0.848688	0.948	1.047312	4.609	4.567	4.526
150	0.8292175	0.9265	1.023783	4.617	4.576	4.536
